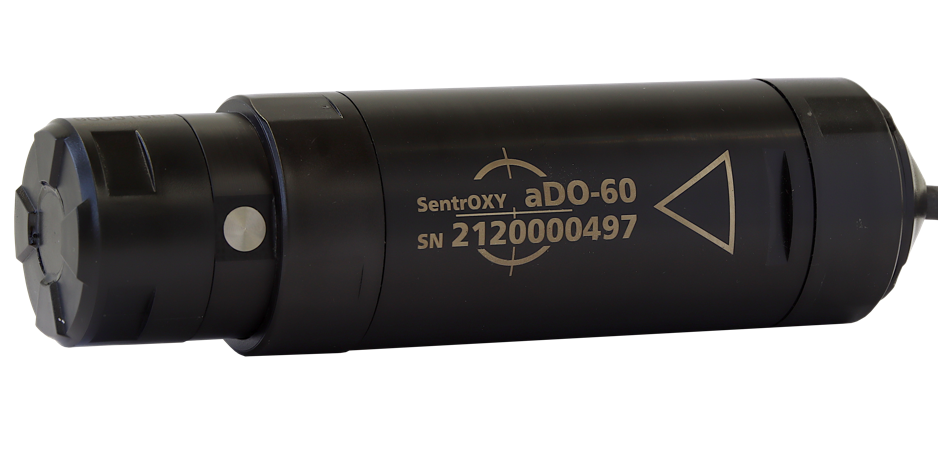

aDO-60: The Total Package
Do you want to measure, control switching actuators directly at the measuring point, display the measured values locally and remotely in the control system, and ensure that this all works in parallel? The aDO-60 is your optical DO sensor solution.
Highlights
Comprehensive Solution
Combines measurement, control, and display connection functions in one unit.
Multi-Interface Support
Includes RS485, 2x 0/4-20 mA, and 2x digital I/Os for versatile integration.
Local and Remote Display
Allows for both local and remote monitoring of measured values.
Parallel Operation
Ensures all functions work simultaneously without interference.
Technical Data
Delve into the detailed specifications of our advanced sensor. The following table provides comprehensive technical data to help you understand the full capabilities and performance metrics of our product.
| aDO-series | |
|---|---|
| Technology | Optical oxygen sensor based on fluorescence quenching |
| Power supply | +12 - 36VDC@max. 2VA |
| Measurement range | DO : 0.01 to 20mg/L 0.1 to 200%air sat |
| Sentro.io - Status information in the field | |
| Simple but safe control | Pre-parameterizable control sets and operation modes |
| Temperature | -5 to 50°C |
| Guaranty probe | 2 years |
| Guaranty cap | 2 years in typical settings |
Applications
