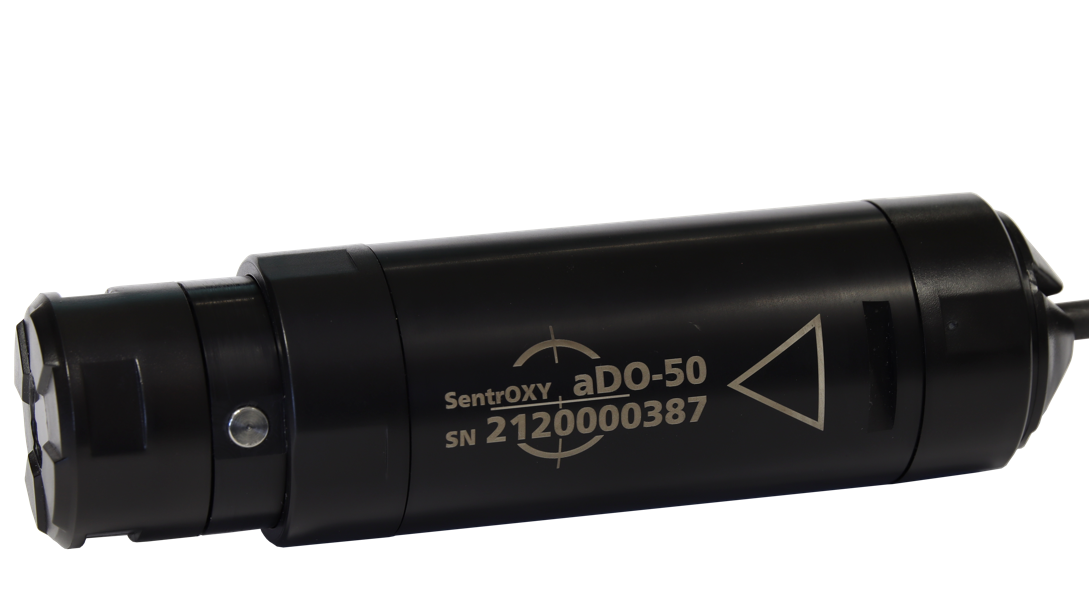

The aDO-50 is an optical DO sensor designed for seamless integration with various interfaces, offering easy access to essential functions, such as Distributed Control System (DCS) validation. With built-in control features, it reduces the need for additional programming by managing thresholds and time-based functions directly. The aDO-50 also supports the direct control of up to two switching actuators, ensuring high investment protection and maximum operational flexibility in a compact form.
Flexible Integration

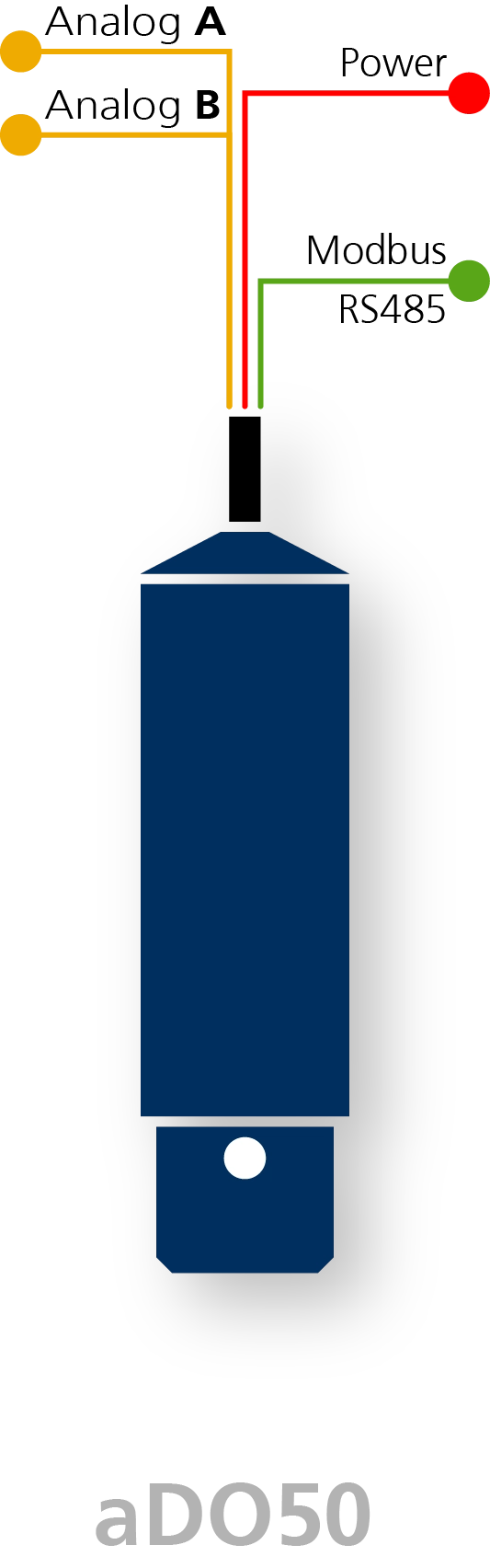

Offers both digital RS485 and 2x 0/4-20 mA interfaces for various connectivity options.
Advanced Control
Includes integrated control functions to reduce the need for additional programming.
Dual Actuator Control
Capable of directly controlling up to two switching actuators, like solenoid valves and alarm light.
Future-Proofing
Designed for high investment protection and operational flexibility, aligning with Industry 4.0 standards.
Technical information
Delve into the detailed specifications of our advanced solution. The following table provides comprehensive technical data to help you understand the full capabilities and performance metrics of our product.
| aDO-series | |
|---|---|
| Technology | Optical oxygen sensor based on fluorescence quenching |
| Power supply | +12 - 36VDC@max. 2VA |
| Measurement range | DO : 0.01 to 20mg/L 0.1 to 200%air sat |
| Sentro.io - Status information in the field | |
| Simple but safe control | Pre-parameterizable control sets and operation modes |
| Temperature | -5 to 50°C |
| Guaranty probe | 2 years |
| Guaranty cap | 2 years in typical settings |
